Flexible Busbar — Braided Copper Connectors and Conductors
Flexible braided copper conductors 25–200 mm wide, press-welded connectors, braided and round stranded copper wire, bare or tinned.
Flexible Busbar และทองแดงถัก
Flexible braided copper is used where an electrical connection must allow for movement, vibration or thermal expansion. We supply flat braided conductors, connectors with press-welded ends, and braided or stranded wire to your specification.
Material characteristics
- Flexible: absorbs movement and vibration between connection points
- Bare or tinned surface
- Tubular braid for shielding with 90–100% coverage
General properties of these materials.
Available forms
- Flexible braided copper conductor

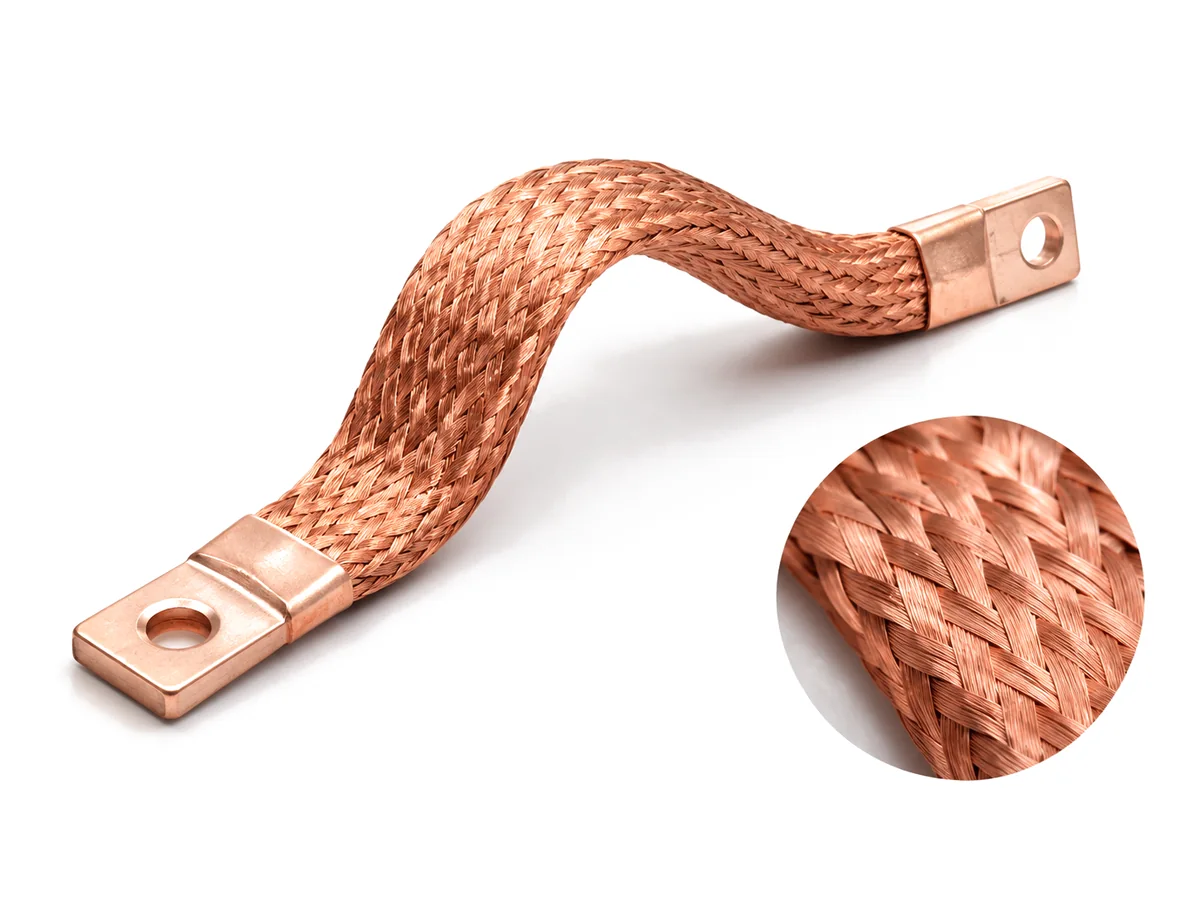

- Flexible braided copper connector (flexible busbar)Ends press-welded into a near-solid bar
- Flexible braided copper wireStranded, braided or woven; bare or tinned
- Round stranded copper wireBare or tinned
Applications listed by Kim Heng Chiang
- Conductors for cables and earth cables
- Carbon brush and loudspeaker cables
- Tubular braid for covering and shielding
- Conductors for low-voltage lighting systems (round stranded wire)
Other typical industry uses
- Flexible links in switchgear and transformers
General industry uses for these materials. Please confirm suitability for your application with our team.
Specifications
Grades, standards and size ranges as listed in our product information. Please confirm grade, size and availability with our team when you order.
Braided conductor — size range
| Width | 25–200 mm |
|---|---|
| Cross-section | 38–3,500 mm² |
| Rated current | 200–5,100 A |
| Thickness | 5.6–30.5 mm |
The full table of widths, cross-sections and current ratings is available on request.
Braided and stranded wire
| Construction | Stranded, braided, woven, or to your specification |
|---|---|
| Surface | Bare or tinned |
| Shielding braid coverage | 90–100% |
Request a quotation
For a fast, accurate quotation, please include:
- Material and grade (for example C1100 copper or C3604 brass)
- Form and dimensions (width × thickness, diameter, length)
- Quantity (kg, pieces or lengths)
- Required date and delivery location
- A drawing, if you have one
Need this material?
Need a size or grade not listed here? Send us your drawing or specification and the quantity you need. Besides standard sizes, we can source special specifications.
